Raymond Forklift Error Codes

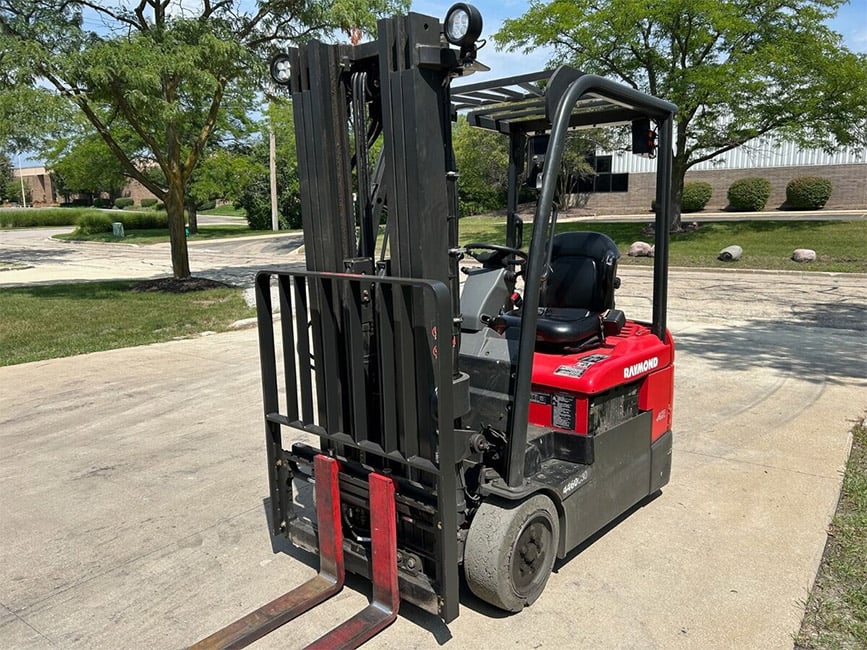

Raymond red forklift

If your Raymond Corp lift truck encounters issues, refer to this Raymond forklift error codes list. Keeping it handy will help you quickly diagnose any problems with your industrial truck:

C14 – Arm Angle Reference Warning

C19 – Default Parameter Warning

C20 – Thumb Control Warning

C23 – Master Control ON / OFF Switch Warning

E101 – Power Amplifier Mismatch for Truck Type

E104 – Brake Output Error

E106 – Digital Output or Field Overcurrent

E107 – Contactor Off

E108 – Contactor Welded or Missing

E110 – Braking System Fault

E112 – Arm Angle Sequence Fault

E114 – Traction Motor Speed Fault

E140 – Checksum Error

E141 – Software Issue

E142 – Power Amplifier Disable Error

E150 – Drive Communication Error

E151 – Drive Communication Tx Error

E157 – CAN-bus Off Error

E159 – Overrun Error

E160 – Reversing Circuit Error

E161 – Lower Valve Error

E200 – Field Open

E201 – M-Error

E202 – Power Amplifier Sensor Error

E214 – Power Amplifier CAN Time-out
