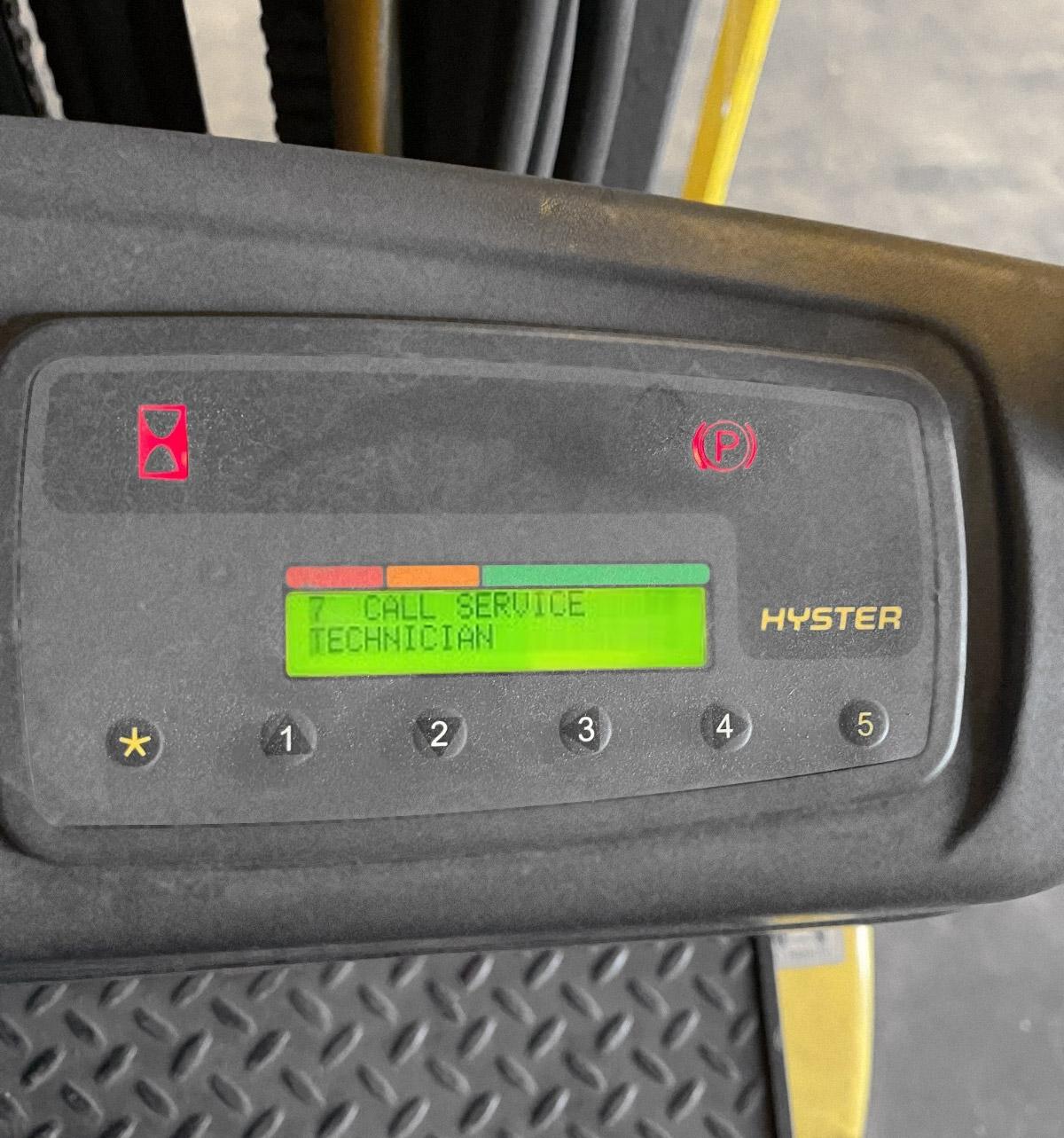

Hyster and Yale Forklift Error Codes
Here are the Hyster forklift error codes and the Yale forklift error codes. They are the same on both brands of lift truck
| Fault or Error Code | Diagnostic Code | Cause of Error |
|---|---|---|
| 524223-0 | XMSN Reverse Pressure Greater Than Commanded Pressure | A. SENSOR SUPPLY OPEN CIRCUIT B. SENSOR FAILURE C. FUNCTIONAL FAILURE — MECHANICAL D. FUNCTIONAL FAILURE IN CONTROLLER |
| 524225-0 | XMSN Forward Pressure Greater Than Commanded Pressure | A. SENSOR SUPPLY OPEN CIRCUIT B. SENSOR FAILURE C. FUNCTIONAL FAILURE — MECHANICAL D. FUNCTIONAL FAILURE IN CONTROLLER |
| 524223-1 | XMSN Reverse Pressure Less Than Commanded | A. LOW TRANSMISSION OIL LEVEL B. SENSOR SUPPLY OPEN CIRCUIT C. SENSOR FAILURE D. FUNCTIONAL FAILURE — MECHANICAL E. FUNCTIONAL FAILURE IN CONTROLLER |
| 524225-1 | XMSN Forward Pressure Less Than Commanded | A. LOW TRANSMISSION OIL LEVEL B. SENSOR SUPPLY OPEN CIRCUIT C. SENSOR FAILURE D. FUNCTIONAL FAILURE — MECHANICAL E. FUNCTIONAL FAILURE IN CONTROLLER |
| 105-3 | Intake Air Temperature (IAT) Sensor OORH | A. SENSOR WIRING OPEN CIRCUIT B. SENSOR SIGNAL SHORTED TO 5V OR BATTERY VOLTAGE C. SENSOR FAILURE D. FUNCTIONAL FAILURE IN CONTROLLER |
| 110-3 | Coolant Temperature Sensor OORH | A. SENSOR WIRING OPEN CIRCUIT B. SENSOR SIGNAL SHORTED TO 5V OR BATTERY VOLTAGE C. SENSOR FAILURE D. FUNCTIONAL FAILURE IN CONTROLLER |
| 177-3 | Transmission Oil Temperature Sensor OORH | A. SENSOR WIRING OPEN CIRCUIT B. SENSOR SIGNAL SHORTED TO 5V OR BATTERY VOLTAGE C. SENSOR FAILURE D. FUNCTIONAL FAILURE IN CONTROLLER |
| 522603-3 | Fuel Temp (LPG) Sensor OORH | A. SENSOR WIRING OPEN CIRCUIT B. SENSOR SIGNAL SHORTED TO 5V OR BATTERY VOLTAGE C. SENSOR FAILURE D. FUNCTIONAL FAILURE IN CONTROLLER |
| 110-4 | Coolant Temperature Sensor OORL | A. SENSOR SIGNAL SHORTED TO SENSOR GROUND. B. SENSOR SIGNAL SHORTED TO FRAME GROUND. C. SENSOR FAILURE D. FUNCTIONAL FAILURE IN CONTROLLER |
| 177-4 | Transmission Oil Temperature Sensor OORL | A. SENSOR SIGNAL SHORTED TO SENSOR GROUND. B. SENSOR SIGNAL SHORTED TO FRAME GROUND. C. SENSOR FAILURE D. FUNCTIONAL FAILURE IN CONTROLLER |
| 522603-4 | Fuel Temp (LPG) Sensor OORL | A. SENSOR SIGNAL SHORTED TO SENSOR GROUND. B. SENSOR SIGNAL SHORTED TO FRAME GROUND. C. SENSOR FAILURE D. FUNCTIONAL FAILURE IN CONTROLLER |
| 522712-3 | Accelerator A Position Sensor OORH | A. SENSOR SUPPLY OPEN CIRCUIT (SENSOR SIGNAL GROUNDS) B. B SENSOR SIGNAL OPEN CIRCUIT C. SENSOR SIGNAL SHORTED TO BATTERY SOURCE D. SENSOR SIGNAL SHORTED TO SENSOR SUPPLY |
| 522713-3 | Accelerator B Position Sensor OORH | A. SENSOR SUPPLY OPEN CIRCUIT (SENSOR SIGNAL GROUNDS) B. B SENSOR SIGNAL OPEN CIRCUIT C. SENSOR SIGNAL SHORTED TO BATTERY SOURCE D. SENSOR SIGNAL SHORTED TO SENSOR SUPPLY |
| 522712-4 | Accelerator A Position Sensor OORL | A. SENSOR SUPPLY OPEN CIRCUIT (+5 VOLTS) B. SENSOR SIGNAL A OPEN CIRCUIT C. SENSOR SIGNAL SHORTED TO FRAME GROUND D. SENSOR SIGNAL SHORTED TO SENSOR GROUND E. SENSOR FAILURE F. FUNCTIONAL FAILURE IN CONTROLLER |
| 522713-4 | Accelerator B Position Sensor OORL | A. SENSOR SUPPLY OPEN CIRCUIT (+5 VOLTS) B. SENSOR SIGNAL A OPEN CIRCUIT C. SENSOR SIGNAL SHORTED TO FRAME GROUND D. SENSOR SIGNAL SHORTED TO SENSOR GROUND E. SENSOR FAILURE F. FUNCTIONAL FAILURE IN CONTROLLER |
