How to find Hyster forklift serial number

The easiest way to find the serial number on a Hyster forklift is by locating the nameplate, also known as a data tag. This metal plate is attached to your forklift and displays important information about the truck. See the example below.

Information on a forklift nameplate or data tag

The forklift nameplate includes:

• Maximum lifting capacity
• Weight of the forklift
• Forklift model number
• Serial number

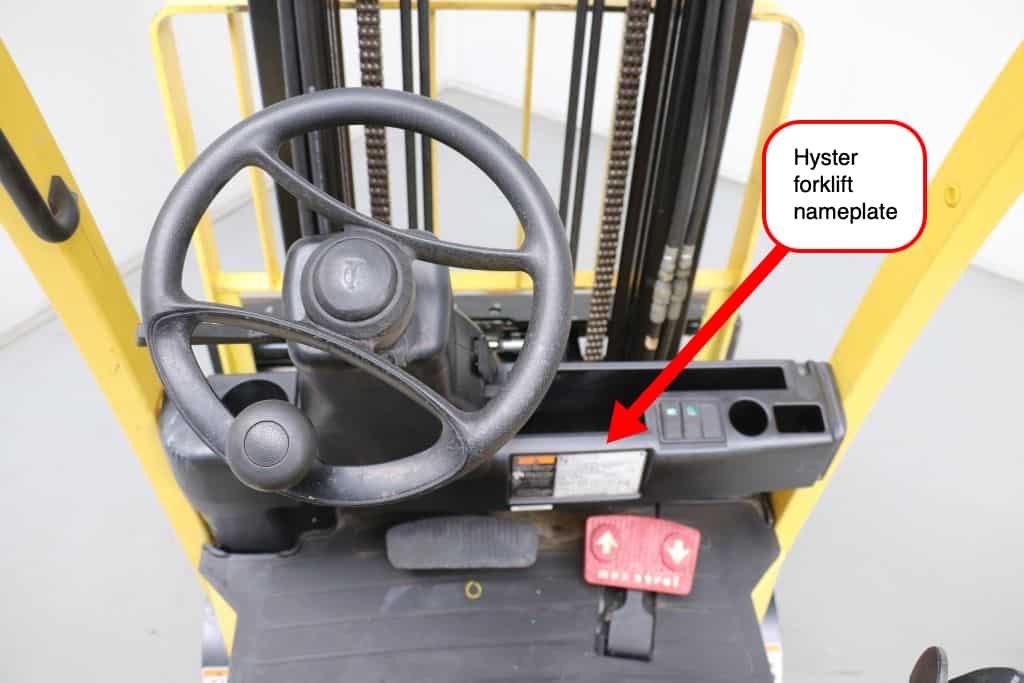

On a Hyster forklift, the nameplate resembles the photo above and is typically found near the dashboard. See below.

Referring to the nameplate is the quickest and simplest method for locating the forklift’s serial number.

What to do if the forklift nameplate is worn, damaged, or unreadable

If the nameplate is damaged, worn out, or unreadable, don’t worry. In many cases, the forklift’s serial number can still be found in the electronics system or stamped on the frame as a numerical metal stamp.

Here is a list of various Hyster forklift models and the locations where you can find their serial numbers:

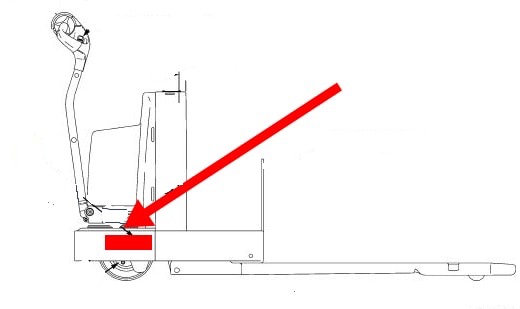

• A229 (B60Z and B80Z): see the highlighted number in Figure A
• A229 (W60Z, W65Z, and W80Z): see the highlighted number in Figure B
• B230 (B60Z and B80Z): see the highlighted number in Figure A
• B230 (W60Z, W65Z, and W80Z): see the highlighted number in Figure B
• B233 (B60Z and B80Z): see the highlighted number in Figure A

• B233 (W60Z, W65Z, and W80Z): see the highlighted number in Figure B
• A214: right-hand of the frame rail, near the counterweight
• C024: right-hand side of the frame, near the counterweight
• D001: rear of the base frame (two lines) in front of the steering tire, on the right-hand side
• D004: right-hand side of the frame near the counterweight

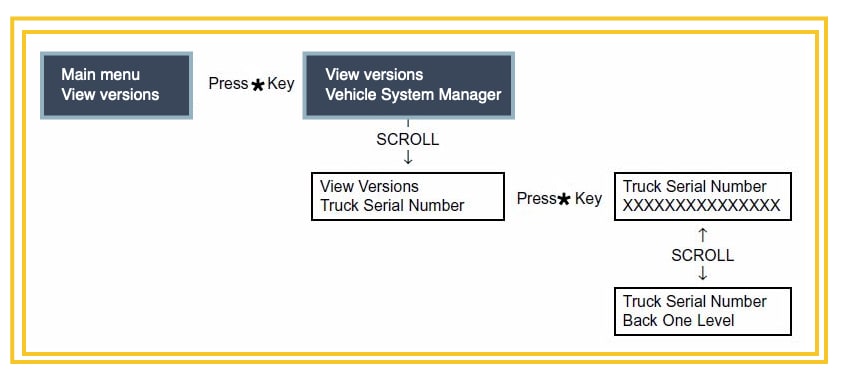

• E010: right-hand side of the frame, under the floor plate; electronically, follow the steps in Figure C
• E114: stamped on top of the rear bulkhead of the frame, inside the right rear leg of the overhead guard
• F001: right-hand side of the frame, under the floor plate; electronically, follow the steps in Figure C
• F108: stamped on top of the rear bulkhead of the frame, inside the right rear leg of the overhead guard
• F114: stamped on top of the rear bulkhead of the frame, inside the right rear leg of the overhead guard
• F187: right-hand side of the frame, under the floor plate; electronically, follow the steps in Figure C
• G004: right-hand side of the frame, under the floor plate; electronically, follow the steps in Figure C
• G006: right-hand side of the frame near the counterweight
• G108: stamped on top of the rear bulkhead of the frame, inside the right rear leg of the overhead guard
• H177: front crossmember of the frame, on the right-hand side
• J004: right-hand side of the frame, under the floor plate; electronically, follow the steps in Figure C
• L177: right-hand side of the frame, under the floor plate; electronically, follow the steps in Figure C
• N005: right-hand side of the frame, under the floor plate; electronically, follow the steps in Figure C
• P005: right-hand side of the frame, under the floor plate; electronically, follow the steps in Figure C
